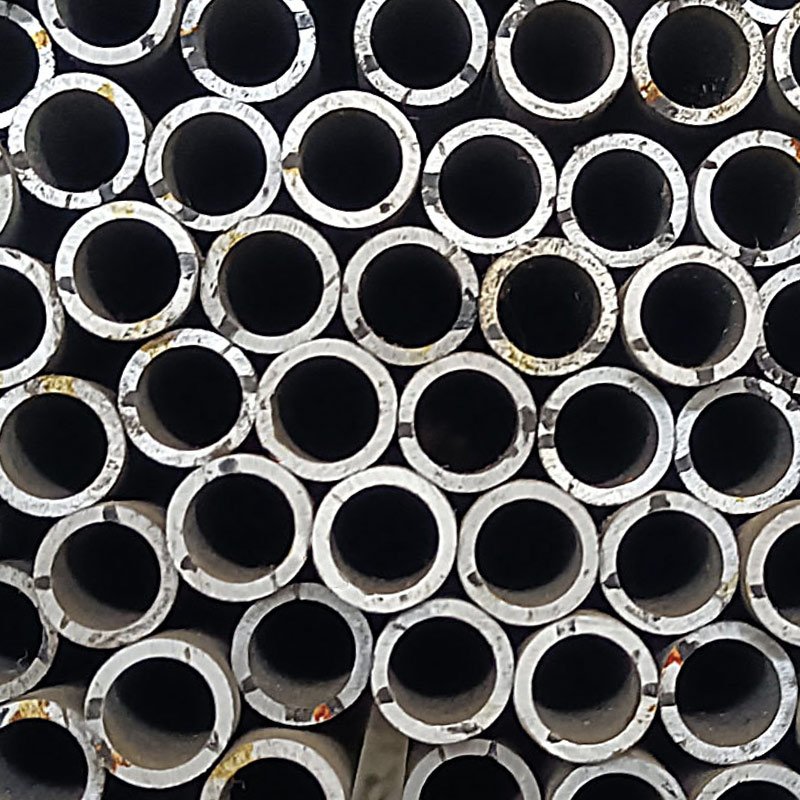

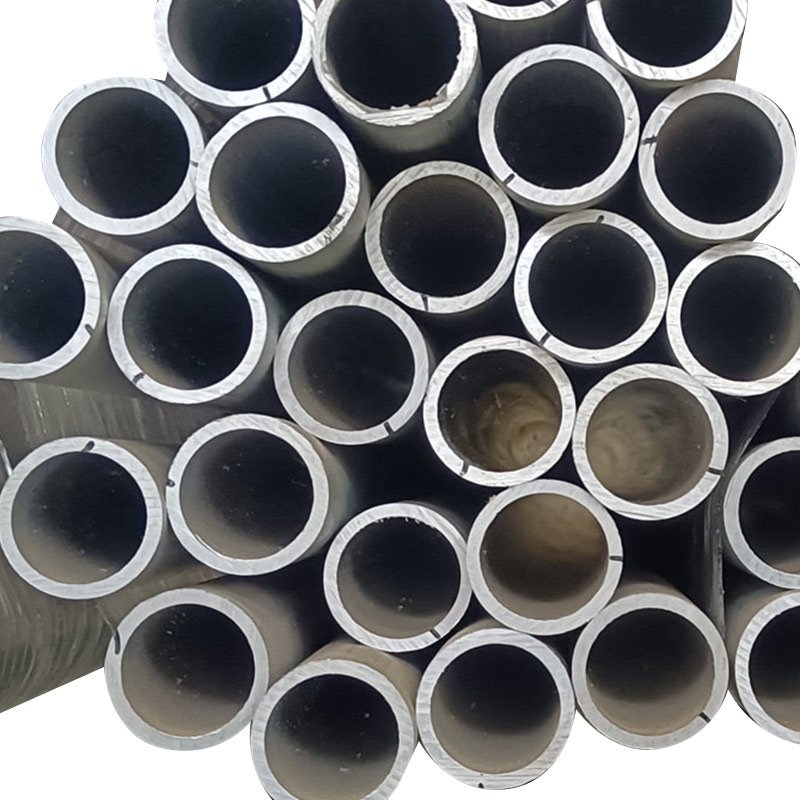

Aluminum Tube

Aluminium Tube is ideal for marine shipbuiding structural applications like framework, shelving or stair rails and etc.

Specifications of Aluminium Tube
Alloy	Temper	Thickness (mm)	Dia (mm)	Length mm	Certificate
6082	T6	1-10	8-220	6000	BV/DNV/LR/CCS
5083	O	1-10	8-220	6000	BV/DNV/LR/CCS
1561	O/H112	1-10	8-220	6000	RS

Chemical composition of Aluminium Tube
Grade	Al, %	Si, %	Fe, %	Cu, %	Mn, %	Mg, %	Cr, %	Zn, %	Ti, %	Other elements, %		Note
Grade	Al, %	Si, %	Fe, %	Cu, %	Mn, %	Mg, %	Cr, %	Zn, %	Ti, %	Each	Total	Note
6082	Base	0.7-1.3	≤ 0.50	≤0.10	0.40- 1.0	0.6-1.2	≤0.25	≤0,20	≤0.10	≤0.05	≤0.15
5083	Base	≤ 0.40	≤ 0,40	≤0.10	0.4 - 1.0	4.0 -4.9	0.05-0.25	≤0.25	≤0.15	≤0.05	≤0.15
1561	Base	≤ 0.40	≤ 0.40	≤0.10	0.70 -1.10	5.5 - 6.5	/	≤0.20	/	≤0.05	≤0.15	Zr(0.02 -0.12)

Mechanical properties of Aluminium Tube
Grade	Temper condition	Thickness t, mm	Yield stress	Tensile strength Rm, N/mm2, min.	Elongation, %,min.
Grade	Temper condition	Thickness t, mm	Rp0,2, N/mm2, min.	Tensile strength Rm, N/mm2, min.	A 50 mm	A 5d
1561	О/Н112	3 ≤ t ≤ 12.5	205	335	11	-
6082	T6	3 ≤ t ≤ 12.5	250	290	6
6082	T6	12.5 ≤ t ≤ 50	260	310	10	8
5083	O	3 ≤ t ≤ 50	145	290	17	17
