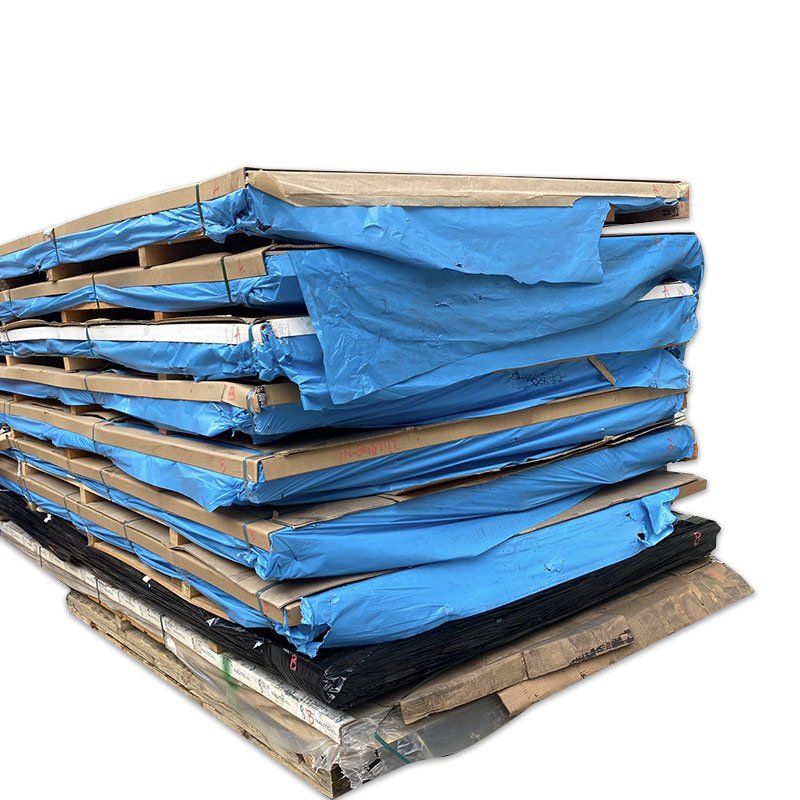

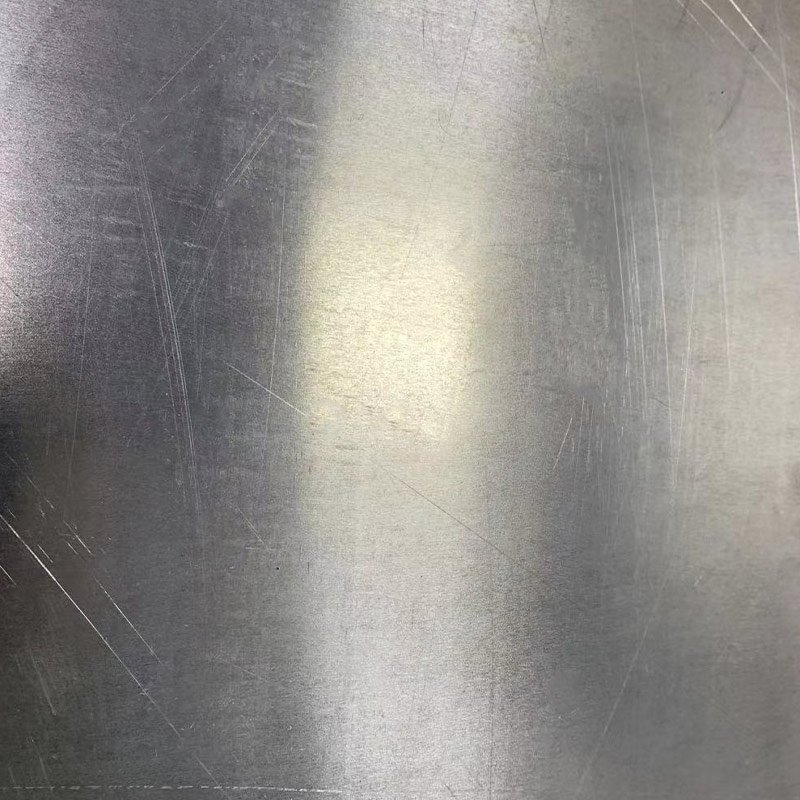

5083 H116 Aluminum Plate
5083 H116 Aluminum Plate has been widely used in marine shipbuilding due to its excellent mechanical properties, good weld capacity and anti-corrosion-resistance, which is used for ships vessls and offshore hull contructures.
| Specifications of marine 5083 H116 Aluminium Plate | |||||
|---|---|---|---|---|---|
| Alloy | Temper | Thickness (mm) | Width (mm) | Length mm | Certificate |
| 5083 | H116 | 1.5-50 | 1500/2000 | 6000/8000 | BV / DNV / LR / CCS |
| Chemical composition of marine 5083 H116 Aluminium Plate | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Grade | Al, % | Si, % | Fe, % | Cu, % | Mn, % | Mg, % | Cr, % | Zn, % | Ti, % | Other elements, % | Note | |
| Each | Total | |||||||||||
| 5083 | Base | ≤ 0.40 | ≤ 0,40 | ≤0.10 | 0.4 - 1.0 | 4.0 -4.9 | 0.05-0.25 | ≤0.25 | ≤0.15 | ≤0.05 | ≤0.15 | |
| Mechanical properties of marine 5083 H116 Aluminium Plate | ||||||
|---|---|---|---|---|---|---|
| Grade | Temper condition | Thickness t, mm | Yield stress | Tensile strength Rm, N/mm2, min. | Elongation, %,min. | |
| Rp0,2, N/mm2, min. | A50 mm | A 5d | ||||
| 5083 | H116 | 3 ≤ t ≤ 50 | 215 | 305 | 10 | 10 |
