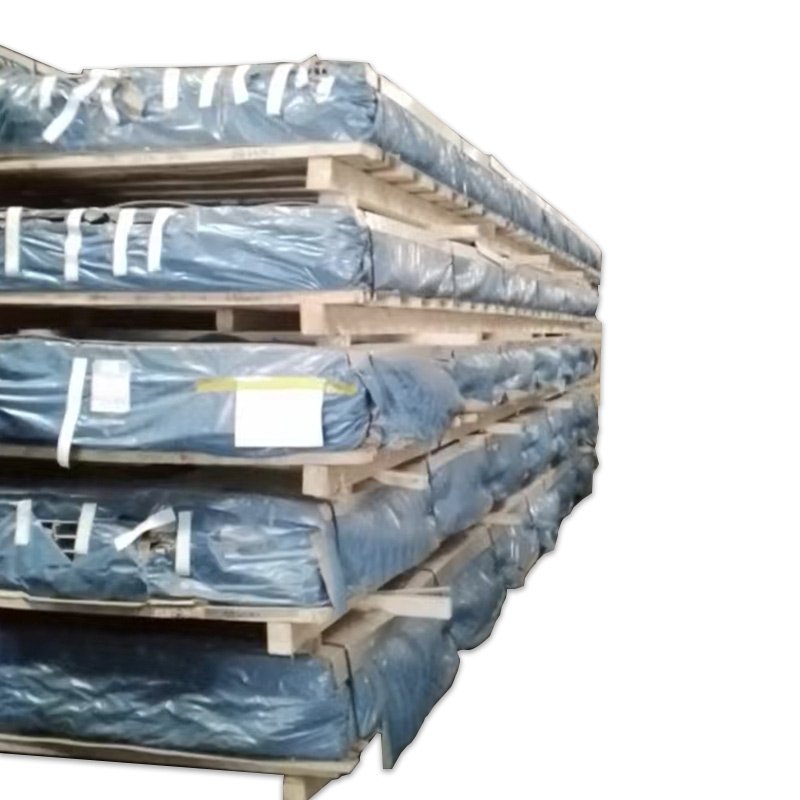

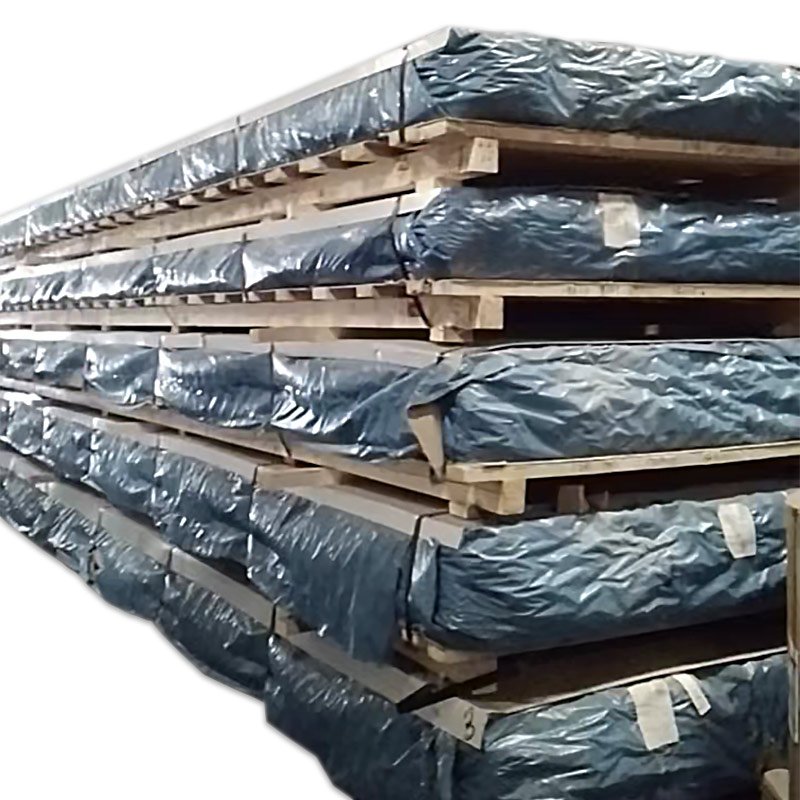

1561-M Aluminum Extruded Panels
1561-M Aluminum Extruded Panels are high capacity, high strength, width extruded panel, which is used for ships vessls and offshore hull contructures.
| Specifications of 1561-M Aluminium Extruded Panels | |||||
|---|---|---|---|---|---|
| Alloy | Temper | Thickness (mm) | Width (mm) | Length mm | Certificate |
| 1561 | M | 3-15 | 1400-1600 | 8000 | RS |
| Chemical composition of 1561-M Aluminium Extruded Panels | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Grade | Al, % | Si, % | Fe, % | Cu, % | Mn, % | Mg, % | Cr, % | Zn, % | Ti, % | Other elements, % | Zr % | |
| Each | Total | |||||||||||
| 1561 | Base | ≤ 0.40 | ≤ 0,40 | ≤0.10 | 0.70 - 1.10 | 5.5-6.5 | / | ≤0.20 | / | ≤0.05 | ≤0.15 | 0.02-0.12 |
| Mechanical properties of marine 1561-M Aluminium Extruded Panels | ||||||
|---|---|---|---|---|---|---|
| Grade | Temper condition | Thickness t, mm | Yield stress | Tensile strength Rm, N/mm2, min. | Elongation, %,min. | |
| Rp0,2, N/mm2, min. | A50 mm | A5d | ||||
| 1561 | M | 3 ≤ t ≤ 12.5 | 205 | 335 | 11 | __ |
